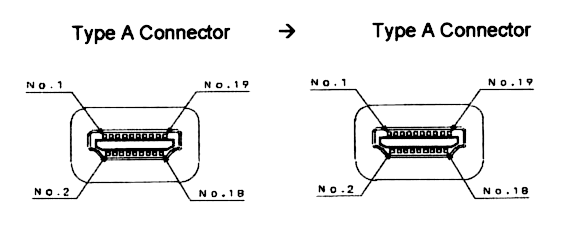

Type A pin

Signal name

Wire

Type A pin

1

TMDS Data2+

A

1

2

TMDS Data2 Shield

B

2

3

TMDS Data2-

A

3

4

TMDS Data1+

A

4

5

TMDS Data1 Shield

B

5

6

TMDS Data1-

A

6

7

TMDS Data0+

A

7

8

TMDS Data0 Shield

B

8

9

TMDS Data0-

A

9

10

TMDS Clock+

A

10

11

TMDS Clock Shield

B

11

12

TMDS Clock-

A

12

13

CEC

C

13

14

Reserved (in cable but N.C. on device)

C

14

15

SCL

C

15

16

SDA

C

16

17

DDC/CEC Ground

D

17

18

+5V Power

5V

18

19

Hot plug Detect

C

19
